Visualize DNA safely and efficiently

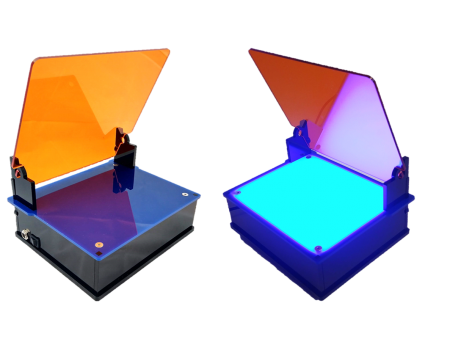

Blue light DNA transilluminators: Pro and S

  • High sensitivity DNA detection

  • No risk of UV damage

  • Hinged lid optimized for band cutting and gel excision

  • Compatible with SYBR family Green DNA stains

  • Choose from blueBox™ S or blueBox™ Pro

Safe

Damage-free DNA staining and visualization

SAFE DNA VISUALIZATION
No protective goggles or equipment required
Safe  blue LEDs with significantly longer lifespan than UV lamps
No UV damage to DNA for downstream applications

CONSISTENT RESULTS
High-intensity blue LED illuminator panel: 96 (S) or 139 (Pro) LEDs
Emission spectrum centered around 470nm
GelGreen™ and compatible dye DNA staining
SyBr family compatible

User friendly

View, document, and cut DNA bands with ease

USER FRIENDLY
Hinged orange filter for direct visualization or gel excision
Even gel illumination and documentation – no UV light bulb artifacts!
Document gels with your own phone, tablet, or professional camera
Scratch-resistant surface for band cutting

Perfect benchtop companion

Universal fit and large viewing area

UNIVERSAL FIT
Large gel viewing area: 90 mm x 100 mm (S) or 140 mm x 114 mm (Pro)
Lock-and-cut hinge for easy band cutting and gel excision (Pro)
Fits gels from all major electrophoresis systems (Pro)

READY TO USE OUT OF THE BOX
12 V power adapter included
One-button operation and easy storage
Scratch-resistant acrylic with integrated lid (never lose it!)

Broad compatibility

Documentation and gel cutting even in bright ambient light

PATENTED TECHNOLOGY
Patented transilluminator technology used by major brands

COMPATIBLE WITH MAJOR DYES

  • GreenView and GreenView Plus
  • GelGreen
  • EvaGreen
  • SYBR Safe
  • GRSafe, Gel Star
  • SYBR Gold, SYBR Green I and II
  • SYPRO Ruby, Orange
  • And others

Technical specifications

blueBox™ S Features:

  • Built-in hinged lid
  • Emission spectrum optimized for safe nucleic acid stains
  • High intensity consistent LED panel for sensitive DNA detection

Viewing area: 100 x 90 mm
Illumination: 96 high-intensity LEDs
Emission spectrum: Peak at 470 nm
Dye compatibility: GreenView Plus, GelGreen, SyBr SAFE
Power supply: AC 100-240V, 12V adapter included
Dimensions: 6.5″ x 4.25″ x 3.25″ height
Weight: 14 oz., 400 gr.

blueBox™ Pro Features:

  • Lock-and-release hinged lid
  • Emission spectrum optimized for safe nucleic acid stains
  • High intensity consistent LED panel for sensitive DNA detection

Viewing area: 140 x 114 mm
Illumination: 139 high-intensity LEDs
Emission spectrum: Peak at 470 nm
Dye compatibility: GreenView Plus, GelGreen, SyBr SAFE
Power supply: AC 100-240V, 12V adapter included
Dimensions: 6.5″ x 5.25″ x 4″ height
Weight: 16 oz., 460 gr.

Licensed under US patents 6198107, 6512236, 6914250, and EP 0965034.
